BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : BRANDO

Model Number : MF-Z-50S

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 10 pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Remote Pilot Pulse Valve

Structure : Right Angle, Threaded Port

Remote Pilot Size : 1/8'', 1/4''

Port Size : 2''

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.1 to 0.8 MPa

Contact Now

BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector

Pulse Jet Valve, also called pulse diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.


Different designs of pulse jet valves:
1. Right Angle Type
2. Embedded Type
3. Fixed Nut Type
4. Straight Through Type
5. Flanged Type

Ordering Code of Z Series Pulse Valve:

BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector

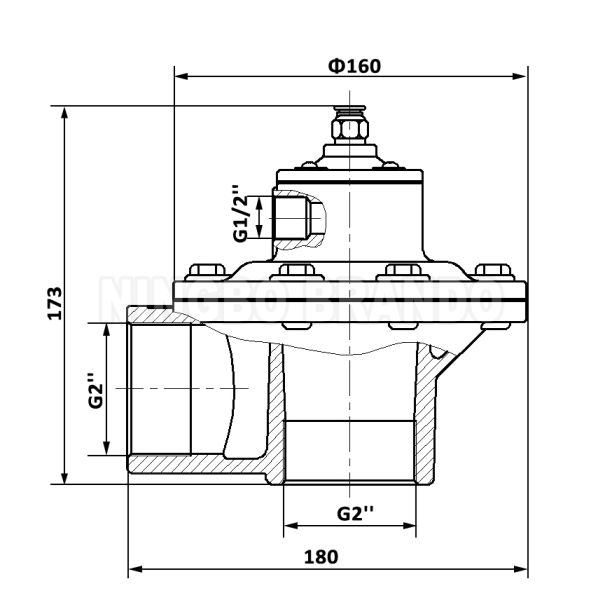

Dimension of MF-Z-50S Pulse Valve:

BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector

Technical Data of Z Series Threaded Pulse Valve:

Integral Pilot
DMF-Z-20
DMF-Z-25
DMF-Z-40S
DMF-Z-50S
DMF-Z-62S
DMF-Z-76S
DMF-Z-102S
Remote Pilot
MF-Z-20
MF-Z-25
MF-Z-40S
MF-Z-50S
MF-Z-62S
MF-Z-76S
MF-Z-102S
Port Size
3/4''
1''
1 1/2''
2''
2 1/2''
3''
4''
Diaphragm Number
1
2
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Working Pressure Range
0.1 to 0.8 MPa
Voltage
24VDC, 24VAC, 110VAC, 220VAC

Related Products:

BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector
Pneumatic Fitting Diaphragm Remote Pilot Enclosure Pulse Controller

Production Picture of Pulse Valve:

BFEC MF-Z-50S 2'' Thread Air Control Pulse Jet Valve For Dust Collector

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
