1.5'' DMF-ZM-40S BFEC Pulse Jet Valve For Dust Collector
ZM Series Quick Mount Pulse Jet Valves:
* 3/4", 1", 1.5" port sizes
* High performance diaphragm valve with dresser nut ports.
* Available with integral pilot or as remotely piloted valve.
* Outlet at 90 degrees to inlet.
Suitable for:
Dust collector applications,in particular for reverse pulse jet filter cleaning and its variations including bag filters, cartridge filters, envelope filters, ceramic filters,and sintered metal fibre filters.
Construction:
Body and Dresser Nuts: Aluminium (diecast)
Ferrule: 304 Ss
Armature: 430FR Ss
Seals:Nitrile or Viton (optional)
Dresser Nut Seals: Nitrile or Viton
Daphragm Seat: Buna, Nylon
Technical Data of Quick Mount Pulse Jet Valves:
| | | | |
| | | | |
| Port size | mm | | | |
| in | | | |
| Blowing Area (m2) | | | |
| Number of Diaphragms | | | |
| Flow | Kv | | | |
| Cv | | | |
| Pressure (Psi) | |
| Temperature (℃) | |
| Voltage | |
Tips: All related accessories are also sold, like Pulse Controller, Diaphragm Repair Kit, Solenoid Valve Coil and Solenoid Valve Armature Assembly.

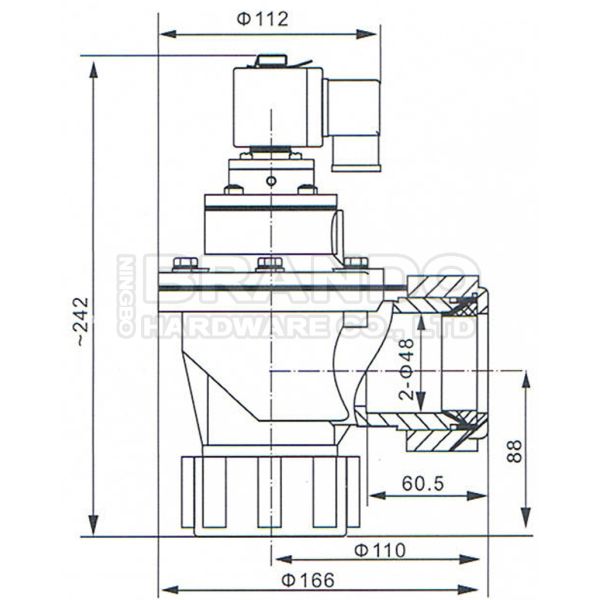

Dimension of DMF-ZM-40S BFEC Pulse Jet Valve:
Video of BFEC DMF-ZM-40S Pulse Jet Valve:
More BFEC Pulse Valve For You to Choose:
Right Angle Type Quick Mount Type Submerged Type
Diaphragm Solenoid Coil Armature Assembly Pulse Controller
