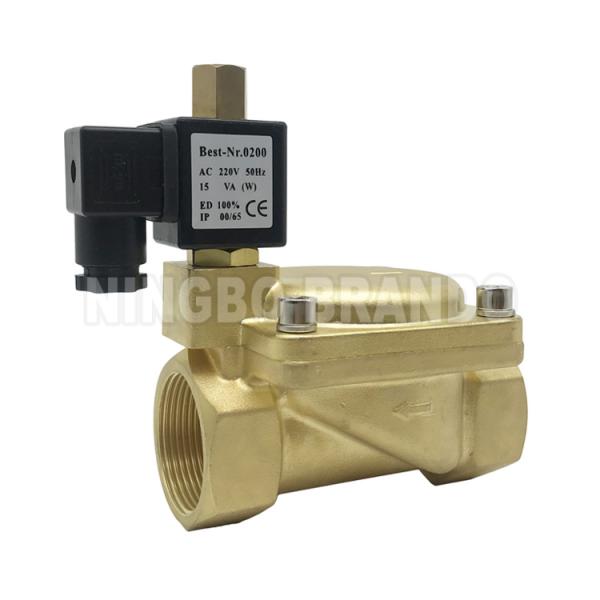

1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC

Brand Name : BRANDO

Model Number : 2W160-15K

Certification : CE, ISO

Place of Origin : Ningbo, China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000pcs per month

Delivery Time : 10 to 15 working days

Packaging Details : Box, Carton, Pallet

Product Name : Solenoid Valve

Port Size : 1/2''

Orifice Size : 16mm

Body Material : Brass

Diaphragm Material : NBR, EPDM, FKM

Working Media : Water, Air, Gas, Liquid, etc

Working Temperature : NBR: -5 to +80℃, EPDM: -5 to +120℃, FKM: -10 to +150℃

Working Pressure : 0 to 8 bar

Operation : Direct Lifting Diaphragm

Function : 2 Way Normally Open

Voltage : 12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Contact Now

1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC

2W-K series are 2 way normally open solenoid valves with port sizes from 3/8'' to 2''. The standard valve body material is brass, and the standard diaphragm material is NBR, EPDM or FKM can be customized according to your requirements to control different media like water, air, gas and liquids, etc. The working pressure range is from 0 to 8 bar, and there are various voltages for you to choose, 12VDC, 24VDC, 24VAC, 110VAC or 220VAC. If you have demands, pls contact us!

Technical Data:

Model No
2W160-10K
2W160-15K
2W200-20K
2W250-25K
2W350-35K
2W400-40K
2W500-50K
Orifice Size
16mm
16mm
20mm
25mm
35mm
40mm
50mm
Port Size
3/8''
1/2''
3/4''
1''
1-1/4''
1-1/2''
2''
Body Material
Brass
Diaprhagm Material
NBR, EPDM, FKM
Working Medium
Water, Air, Gas, Liquid, etc
Operation
Direct Lifting Diaphragm
Function
2 Way Normally Open
Fluid Viscosity
20 CST below
Working Pressure
0 to 8 bar
Working Temperature
NBR: -5 to +80℃
EPDM: -5 to +120℃
FKM: -10 to +150℃
Voltage
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

Main Dimension:

1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC

Model No
Port
A
B
C
D
2W160-10K
3/8''
63
56
181
118
2W160-15K
1/2''
63
56
181
118
2W200-20K
3/4''
66
56
122
123
2W250-25K
1''
90
76
130
147
2W350-35K
1-1/4''
99
76
134
160
2W400-40K
1-1/2''
115
93
160
165
2W500-50K
2''
133
93
170
176

Our Production:

1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC

Similar Products:

1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC 1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC 1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC 1/2'' Normally Open Brass Solenoid Valve For Water Air Gas Liquid 24VDC 220VAC

Normally Open

3/8'' to 2'', 8 bar max

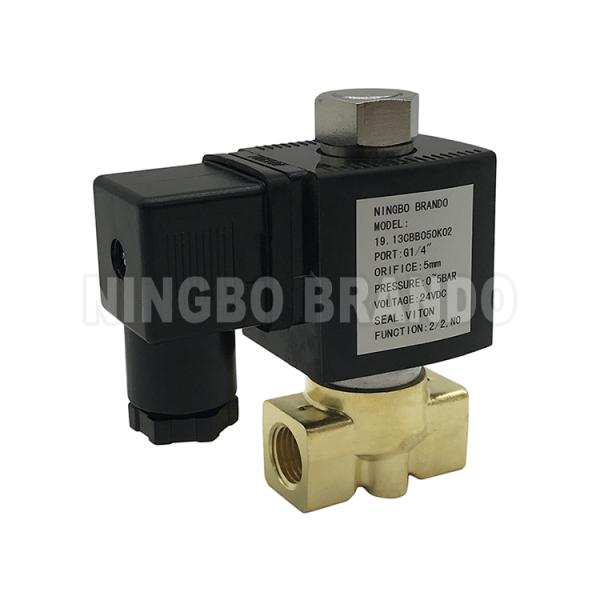

Normally Open

1/8'' to 3/8'', 30 bar max
Normally Open

1/4'' to 1'', 16 bar max

Normally Open

1-1/4'' to 2'', 16 bar max
