ASCO Type G353A045 1 1/2'' Pipe 1/4'' Remote Pilot Diaphragm Valve For Pulse Jet Dust Collector
Brando has more than 10 years experiences in manufacturing and exporting diaphragm valves and their diaphragm repair kits. The valve shown is 1 1/2'' G353A045 ASCO replacement remote pilot diaphragm valve for pulse jet dust collector.
1. Product Name: G353A045 Remote Pilot Pulse Valve
2. Actuation: Air
3. Port Size: 1 1/2''
4. Remote or Integral Pilot: Remote Pilot
5. Remote Pilot Connection: 1/4''
6. Valve Type: 2 Way
7. Function: Normally Closed
8. Diaphragm Material: NBR (Buna)
9. Body Material: Aluminum ADC12
10. Working Pressure: 0.35 to 0.85 MPa
11. Working Temperature: -10 to +70℃
YouTube video of G353A045 ASCO Type Remote Pilot Pulse Valve:
Main dimension of G353A045 1.5'' Dust Collector Diaphragm Valve:

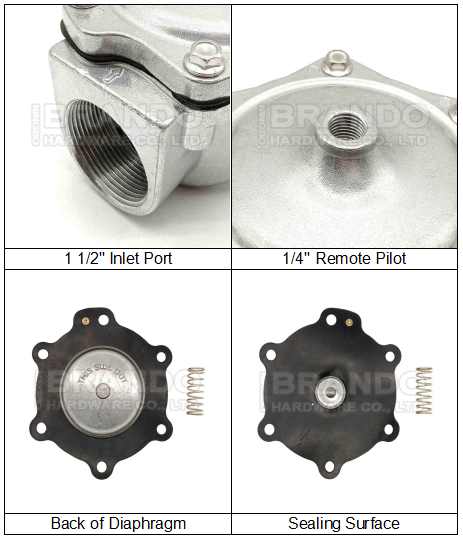

Details of G353A045 ASCO Replacement Dust Collector Pulse Valve:
Technical parameters of G353 Series ASCO Type Remote Pilot Pulse Valves:
| | | | Operating Pressure Differential (Bar) | | |
| | | | | | | |
| | | | | | |
| | | | | | |
| | | | | | |
Installation:
1. The valves can be mounted in any position without affecting operation;
2. Threaded pipe connection is: G = G (ISO 228/1) or compression fittings;
3. When connecting piping or tubing to the G1/8 connection in the valve bonnet, the remote ASCO pilot valve should be mounted as close as possible to the main pulse valve. Connection tubing lengths of 3 meter or less have little effect on the pulse response. Installations with over 3 meter of tubing must be tested under actual operating conditions. Tubing with Φ 6 mm O.D. is recommended for all installations;
4. For compression fitting types tightness is achieved by the compressed gasket on the blow tube;
5. Other pipe threads are available on request;
6. Installation/maintenance instructions are included with each valve;
7. Spare parts kit and replacement coils are available.
