3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : Brando

Model Number : CA89MM

Certification : CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Port Size : 3"

Working Medium : Air

Application : Dust Collector

Power : Solenoid

Structure : Diaphragm

Pressure : 0.3~0.8Mpa

Working Temperature : -5℃ to 55℃

Voltage : AC220V, AC110V, AC24V, DC24V

Diaphragm Material : NBR, FKM

Body Material : Aluminum Alloy

Contact Now

3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

The full immersion manifold flat mount valves of the Goyen MM deliver the most powerful air pulse in square tank systems. When included in a fluid control and/or regulation system, valve manifolds have shown to improve efficiency as well as reduce energy costs. These diaphragm valves are designed for dust collectors and baghouses with reverse pulse jet filter cleaning systems.

Different pulse jet valve structure:
* Right Angle Type
* Manifold Mount Type
* Dresser Nut Type * Straight Through Type
* Flanged Type

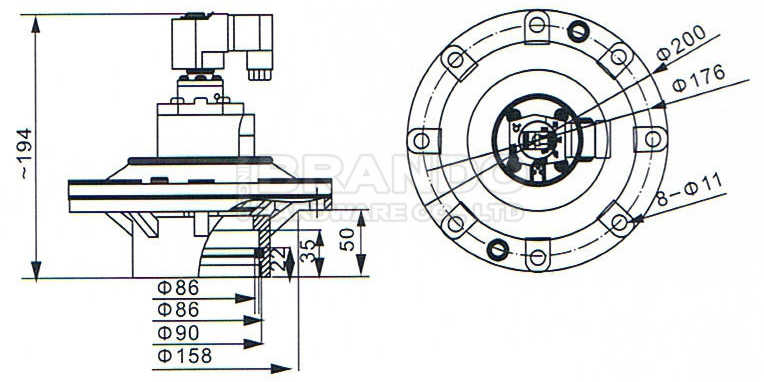

Main Dimension
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

CA89MM
Technical Data
Model No
CA25MM
CA40MM
CA50MM
CA62MM
CA76MM
CA102MM
Nominal Size
25
40
50
62
76
102
Port Size
mm
25
40
50
62
76
102
inch
1''
1 1/2''
2''
2 1/2''
3''
3 1/2''
4''
Pressure Range
0.3 to 0.8 MPa
Temp.
Range
NBR
-40 to 82 ℃
FKM
-29 to 232 ℃
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector
Our Production
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

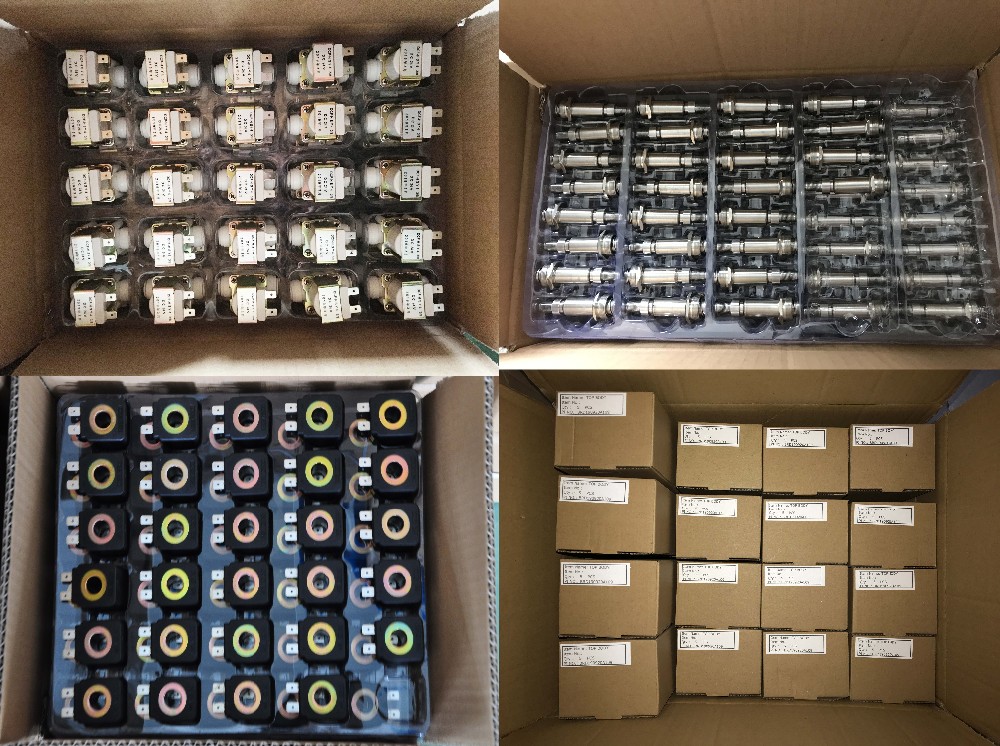

Packing&Shipping
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

Internal Box
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

Carton
3" CA89MM Goyen Type Manifold Mount Full Immerse Pulse Jet Valve For Dust Collector

Pallet

Construction:
Body and Dreeser Nuts: Aluminum (diecast)
Ferrule: 305 Stainless Steel
Armature: 430FR Stainless Steel
Diaphragm and Seals: Nitrile or FKM
Spring: 304 Stainless Steel
Screws: 302 or 304 Stainless steel
Outlet Pipe: Schedule 40 wrought steel zinc passivated
Diaphragm Seat: PA-66 (25 & 40MM standard), Nitrile-coated mild steel (76MM standard), Acetal (102MM standard) or FKM coated mild steel
