CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

  • 1
  • 2

Brand Name : Brando

Model Number : CA45DD

Certification : CE

Place of Origin : CHINA

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 100000 pcs per month

Delivery Time : 4-7 days

Packaging Details : Inner Boxes, Carton, Pallet

Port Size : 1 1/2''

Valve Series : DD

Valve Structure : Right Angle, Dresser Nut

Diaphragm Material : NBR, FKM

Working Pressure Range : 0.35 To 0.85 MPa

Voltage : AC220V, AC110V, AC24V, DC24V

Body material : Aluminum (Diecast)

Application : Dust Collector

Contact Now

CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

CA45DD /CA45DD010-300 / CA45DD010-305 /CA45DD000-301 type pulse jet valves . It is compression fitting pipe version, there are fixed nut at both ends which make it easy to install and use the valve.


It is also right angle with the 90° angle between the inlet and outlet, & solenoid control, 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

We produce series pulse jet valve: CA20T , CA25T , CA35T , CA45T , CA50T , CA62T , CA76T , CA25DD , CA45DD ,CA25FS, CA45FS , CA50MM, CA62MM, CA76MM, CA89MM
RCA20T , RCA25T , RCA35T , RCA45T , RCA50T , RCA62T , RCA76T , RCA25DD , RCA45DD , RCA25FS, RCA45FS , RCA50MM, RCA62MM, RCA76MM, RCA89MM

Technical Data of DD Series Pulse Jet Valves:

Model No
CA20DD
CA25DD
CA45DD
Port Size
3/4''
1''
1 1/2''
Pipe Connection
Dresser Nut
Diaphragm Number
1
1
2
Working Pressure Range
0.35 to 0.85 MPa (5 to 125 PSI)
Diaphragm Material
NBR, VITON
Valve Body Material
Aluminum (Diecast)


Ordering Code of DD Series Pulse Jet Valve:

CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector

Specifications

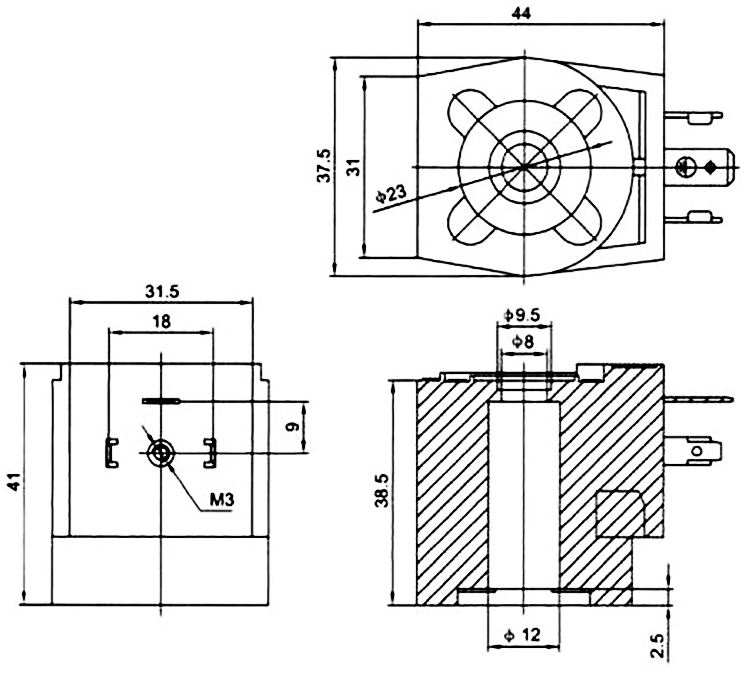

CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
Model No.
BB12039508
Ref No.
QR
Voltage
AC110V, AC220V, DC12V, DC24V
Connection
DIN 43650A
Other can be customized, please contact us.

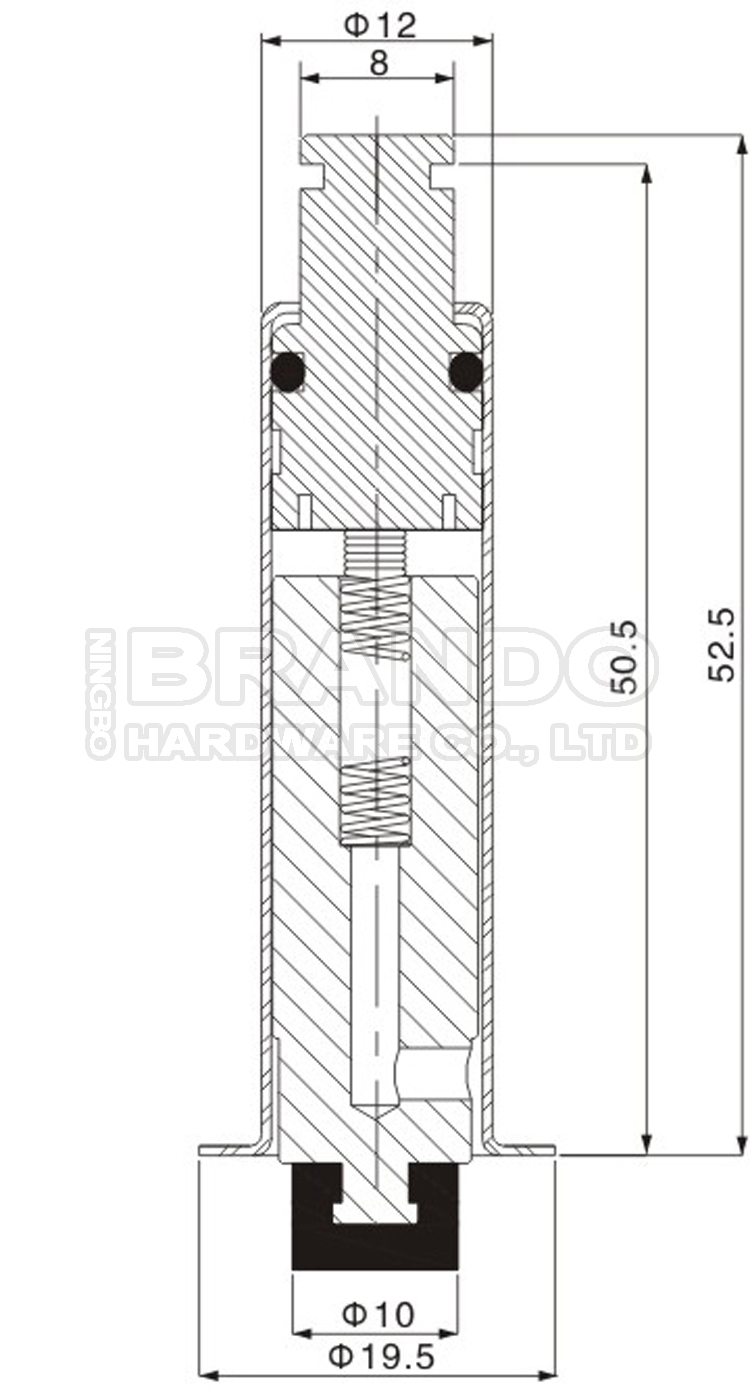

CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
Model No.
BAPC212050501
Ref No.
K0380
NC/NO
NC
2 Way or 3 Way
2Way
Other can be customized, please contact us.

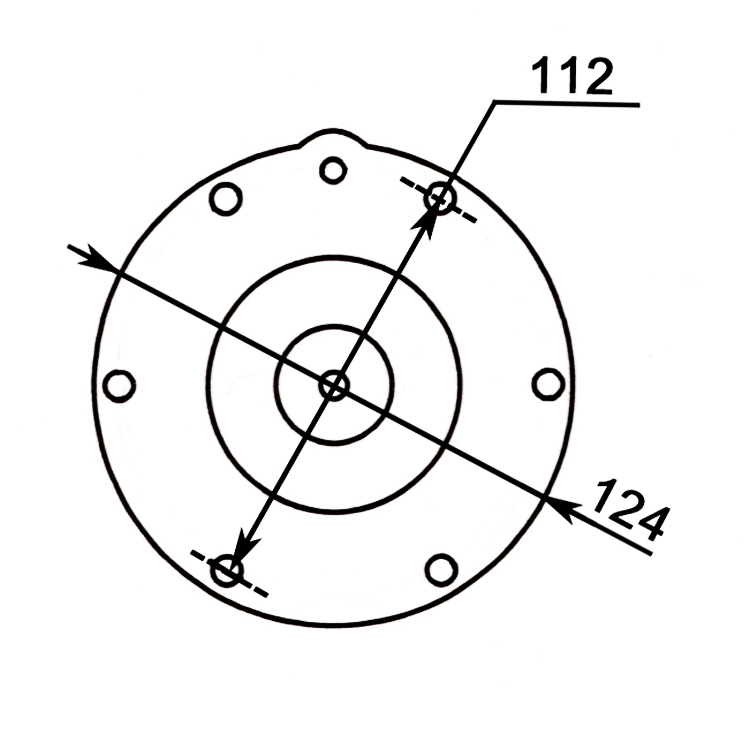

CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
Model No.
G45
Ref No.
K4502
Replace For
CA45T
Mounting Hole Dia.
7mm
Sealing Disc OD
68mm
CA45DD G1 1/2" Goyen Type Dresser Nut Pulse Jet Valve For Dust Collector
Ref. Number
CA45DD
Working Pressure
0.3~0.8Mpa
Voltage
24V DC, 110V AC, 220V AC
Other voltages can be customized.
Diaphragm Nos
2
Port Size
G1-1/2''
Other requirement please contact.
