CA50MM 2'' Submerged Pulse Jet Valve 24V DC 220V AC For Dust Collector

Name: CA50MM 2 Submerged Pulse Jet Valve 24V DC 220V AC For Dust Collector
Brand: Brando
Price: 1 USD

Wholesale CA50MM 2'' Submerged Pulse Jet Valve 24V DC 220V AC For Dust Collector from china suppliers

Brand Name : Brando

Model Number : CA50MM

Certification : ISO、CE

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100000pcs per month

Delivery Time : 7 working days

Packaging Details : inner boxes,cartons,pallets

Port Size : G2''

Type : Submerged

Number of Diaphragm : 2

Power : Solenoid

Structure : Diaphragm

Seal Material : NBR(common, all available)

Body Material : Aluminum (Diecast)

Voltage : AC220V, AC110V, AC24V, DC24V

Contact Now

CA50MM 2'' Diaphragm Valve Full Immersion 220V AC 24V DC

Products Description

Pulse Jet Valve, also called diaphragm valve acts as a "switch" for compressed air in the dust collector system for bag filters. It is controlled by the electric signals from the pulse controller. Pulse jet valves are used in filtering systems of dust collectors, gas turbines, and desulfurization equipment. They are commonly used to clean filters such as cartridge filters, envelope filters, ceramic filters, and sintered metal fiber filters.

Goyen Type Pulse Jet Valve: 1. Right angle Pulse Jet Valve: CA15T, CA20T, CA25T, CA35T, CA45T, CA50T, CA62T, CA76T, RCA20T, RCA25T, RCA45T, RCA50T, RCA62T, RCA76T 2. Dresser Nut Pulse Jet Valve: CA20DD, CA25DD, CA45DD, RCA20DD, RCA25DD, RCA45DD 3. Immersion Pulse Jet Valve: CA50MM, CA62MM, CA76MM, CA102MM, RCA50MM, RCA62MM, RCA76MM, RCA102MM 4. Flanged Pulse Jet Valve: CAC25FS, CAC45FS, RCA25FS, RCA45FS 5. Remote solenoid valve: RCA3D2, RCA3DS

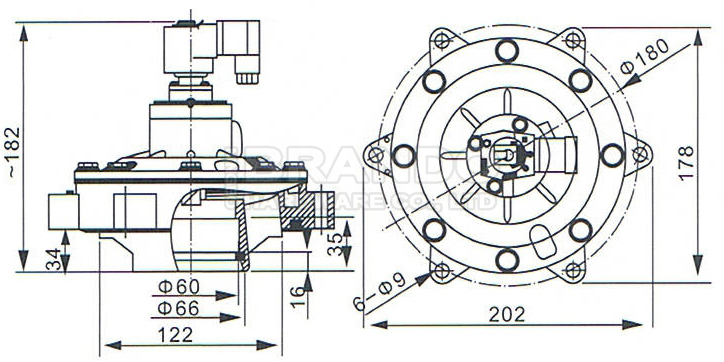

Main Dimension

CA50MM

Technical Data

Model No		CA25MM	CA40MM	CA50MM	CA62MM	CA76MM	CA102MM
Nominal Size		25	40	50	62	76	102
Port Size	mm	25	40	50	62	76	102
Port Size	inch	1''	1 1/2''	2''	2 1/2''	3''	3 1/2''	4''
Pressure Range		0.3 to 0.8 MPa
Temp. Range	NBR	-40 to 82 ℃
Temp. Range	FKM	-29 to 232 ℃

Technical Data of CA50MM Electromagentic Valve:

Model No.	CA50MM
Port Size	G2''
Diameter (mm)	50
Number of Diaphragm	2
Valve Type	Full Immersion Manifold Flat Mount Valve
Working Medium	Air
Pressure Range	0.3~0.8Mpa
Working Temperature	-5~+55℃
Seal Material	NBR(common, all avaliable)
Body Material	Aluminum Alloy

OEM ODM Service

Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing

Welcome to your any question and inquiry!

Product Tags:

CA50MM 2'' Pulse Jet Valve

2'' Submerged Pulse Valve

Dust Collector Submerged Pulse Jet Valve

CA50MM 2'' Submerged Pulse Jet Valve 24V DC 220V AC For Dust Collector Images
