DMF-T-25S 1'' BFEC Right Angle Solenoid Pulse Jet Valve For Dust Collector

Name: DMFT25S 1 BFEC Right Angle Solenoid Pulse Jet Valve For Dust Collector
Brand: BRANDO
Price: 1 USD

Wholesale DMF-T-25S 1'' BFEC Right Angle Solenoid Pulse Jet Valve For Dust Collector from china suppliers

Brand Name : BRANDO

Model Number : DMF-T-25S

Certification : CE, ISO

Place of Origin : China

MOQ : 1 pc

Price : Negotiation

Payment Terms : T/T, PayPal, Western Union

Supply Ability : 50000 pcs per month

Delivery Time : 4 to 7 working days

Packaging Details : Box, Carton, Pallet

Product Name : Pulse Valve

Valve Design : Straight Through, Threaded Port

Port Size : 1''

Diaphragm Material : NBR, FKM

Voltage : 24VDC, 110VAC, 220VAC

Working Pressure Range : 0.1 to 0.8 MPa

Contact Now

BFEC DMF-T-25S 1'' Straight Through Pulse Jet Valve For Dust Collector 24V 220V

Products Description

DMF-Z / MF-Z type Solenoid Pulse Jet valves

DMF-Z-25 type SBFEC right angle solenoid pulse jet valve. It is 1inc port size.

Normal is G thread, NPT thread is also available.

SBFEC right angle solenoid pulse jet valve, DMF Series is solenoid control pulse jet valves, MF series is air control pulse jet valves, & we have two types right angle thread type & submerged type, with different connection from 20mm~102mm, 3/4" ~4".

It is 2-way dust collector valve used for pulsing large volumes of air into filter bags for particulate removal.

Suitable for :
Dust collector applications, in particular for reverse pulse jet filter cleaning including bag filters, cartridge filters, envelope filters, ceramic filters, and sintered metal fibre filters.

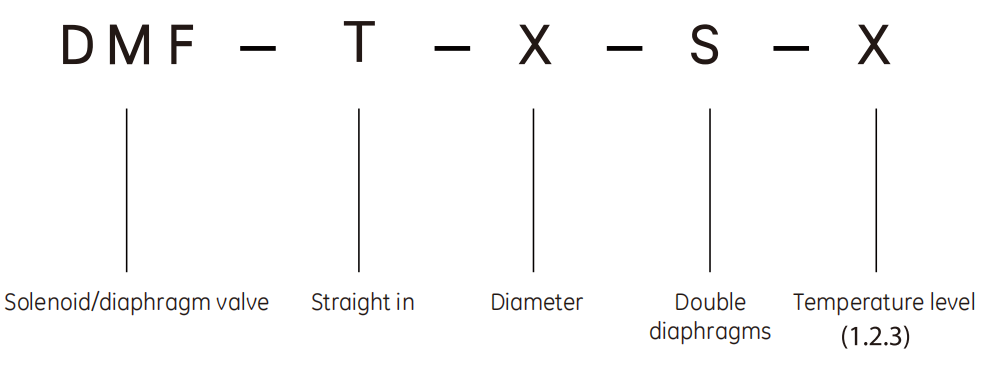

Ordering Code

DMF-T-25S 1'' BFEC Right Angle Solenoid Pulse Jet Valve For Dust Collector

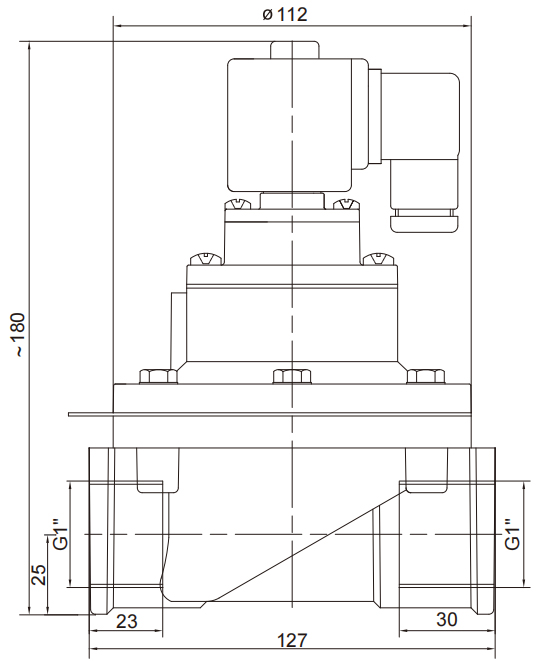

Main Dimension

DMF-T-25S

Technical Data

Integral Pilot	DMF-T-20	DMF-T-25S	DMF-T-40S	DMF-T-50S	DMF-T-62S
Remote Pilot	MF-T-20	MF-T-25S	MF-T-40S	MF-T-50S	MF-T-62S
Port Size	3/4''	1''	1 1/2''	2''	2 1/2''
Diaphragm Number	1	2
Diaphragm Material	NBR, FKM
Body Material	Aluminum Alloy
Pressure Range	0.1 to 0.8 MPa
Voltage	24VDC, 24VAC, 110VAC, 220VAC

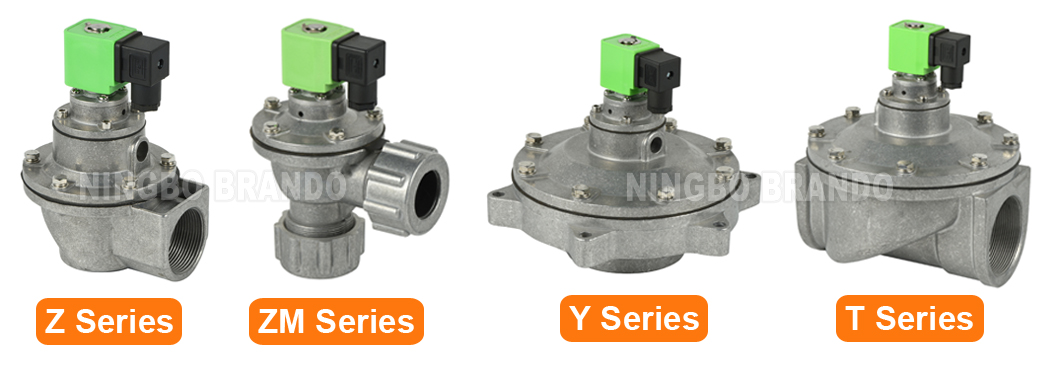

Pulse Valve Series

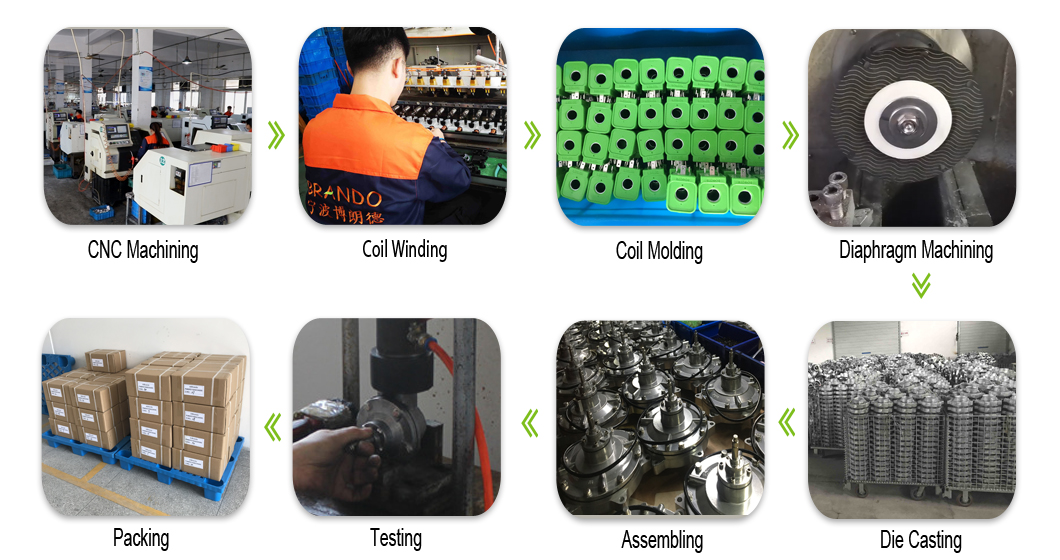

Our Production
