CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

Product Categories
Ningbo Brando Hardware Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

  • 1
  • 2

Brand Name : Brando

Model Number : CA25T

Certification : CE

Place of Origin : China

MOQ : 1 PC

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 50000 sets per month

Delivery Time : 4-7 days

Packaging Details : Inner Box, Carton, Pallet

Product Name : Pulse Jet Valve

Port Size : 1'', DN25

Pipe Connection : Threaded

Nonimal Diameter : φ25mm

Body Material : Aluminum (Diecast)

Voltages : 24VDC, 24VAC, 110VAC, 220VAC

Diaphragm Material : Nitrile or Viton

Working Pressure : 0.3-0.8 MPa

Power : Solenoid

Operation : Internal Pilot

Price : Negotiation

Contact Now

CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

Products Description

Pulse Jet valves are also called as dust collector.They are indirect type solenoid valves.When the solenoid of pulse jet valves gets energized, air trapped in the diaphragm is exhausted causing pressure difference in the diaphragm.Then the diaphragm is suddenly opened.When it is de-energized,airpasses through the hole to the chamber which can balance the air pressure and close the valve.The opening and closing of the valve are done very fast for flter cleaning and consumption of compressed air effectively. Our offered pulse jet valves are wellknown for their reliability, durability, effective operation, compact size, efficient controls, and power saving characteristics.

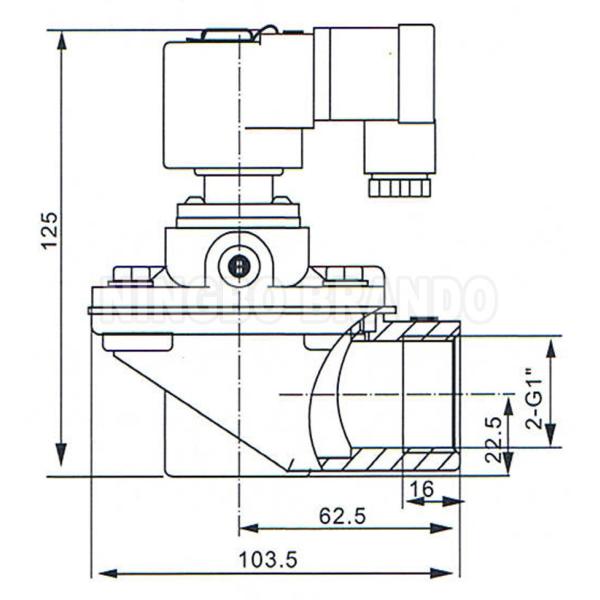

Main Dimension
CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

CA25T

Technical Data
Model NO
CA15T
CA20T
CA25T
CA35T
CA45T
CA50T
CA62T
CA76T
Orifice Size
(mm)
15
20
25
35
45
50
62
76
Port Size
(Inch)
1/2''
3/4''
1''
1 1/2''
1 1/2''
2''
2 1/2''
3''
Diaphragm Number
1
2
Working pressure
0.3 to 0.8 MPa
Fluids
Air
Voltage
24VDC, 24VAC, 110VAC, 220VAC
Diaphragm Material
NBR, FKM
Body Material
Aluminum Alloy
Valve Structure
Right Angle (Outlet is at 90° to Inlet)

CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector


Our Production
CA25T 1'' Threaded Right Angle Pulse Jet Valve T Series For Dust Collector

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
